Application

AKO temperature regulators of the illustrated series are suitable for keeping medium temperatures (eg water, oils, etc.) constant and can be used both as divider and as a mixing valve. They are characterized by a high degree of maintenance-free operation, exceptional serviceability and robustness. An exchange of the internal parts is possible – without removal of the control valve from the pipeline – on the spot. Incorrect assembly can be excluded. The temperature regulators can be used in any position.

Function

The AKO 3-way temperature control valve with internal thermostats has, depending on the nominal width, a number of expansion elements, each equipped with its own slider. The strain elements are surrounded by the medium and absorb the temperature of the medium. The characteristic of the regulator is determined by the opening start and the full opening temperature of the expansion element. When the delivery medium reaches the opening temperature of the expansion element, this opens the one path of the three-way controller while the other path begins to close.

Temperature Control Valve Internal Sensor

227.0520/227.0521

3-Way-Temperature Control Valve

G-CuSn10
DN40 – DN100

227.0700/227.0701

3-Way-Temperature Control Valve

1.4308
G 1/2″ – G 1 1/4″

227.0420/227.0421

3-Way-Temperature Control Valve

1.4308
DN40 – DN100

226G1121-200

3-Way-Temperature Control Valve

EN-GJS-400
DN200

226G0120/226G0121

3-Way-Temperature Control Valve

EN-GJS-400
DN40 – DN150

226.0650-150/226.0651-150

3-Way-Temperature Control Valve
G-CuZn35Al
Outside G 1 1/2″ threaded

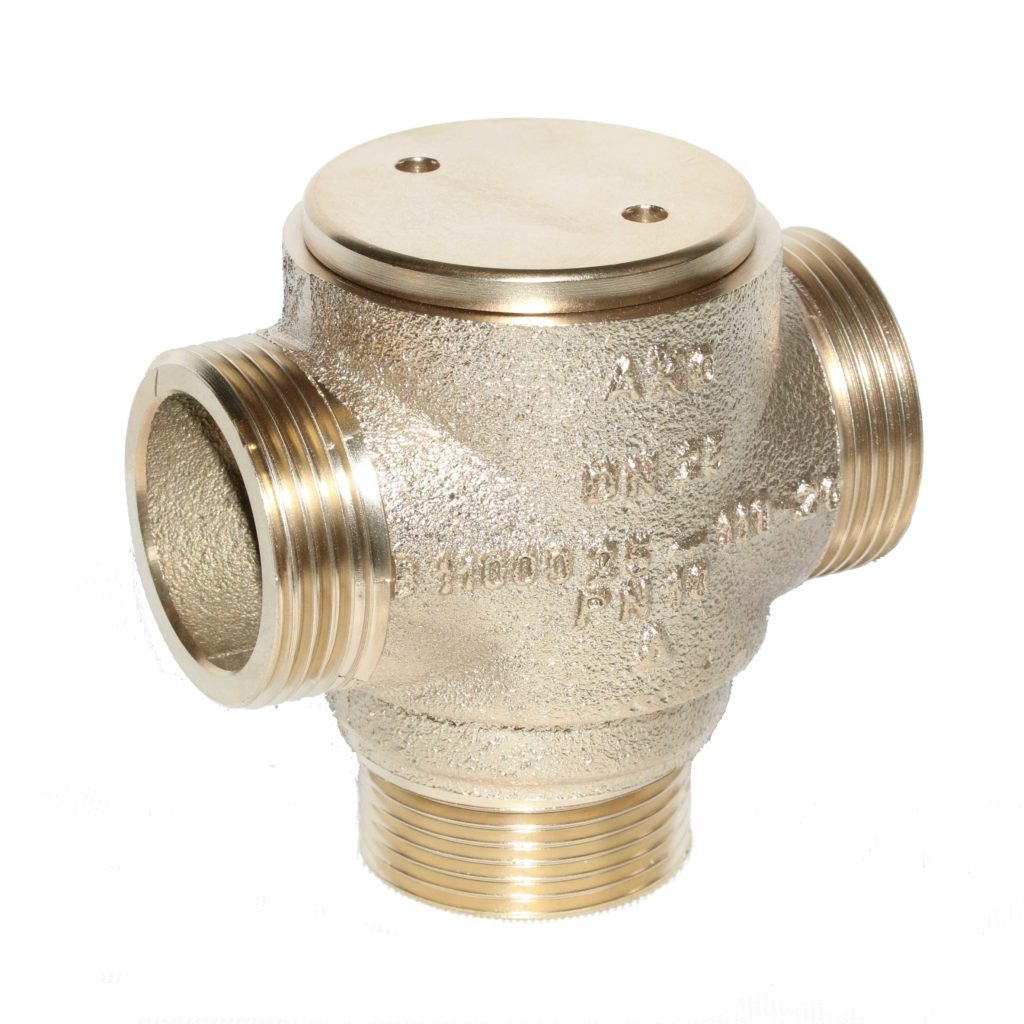

226.0650-100/226.0651-100

3-Way-Temperature Control Valve

G-CuZn35Al
Outside G 1 1/4″ threaded

226.0120/226.0121

3-Way-Temperature Control Valve

EN-GJL-250
DN40 – DN150

226.0620/226.0621

3-Way-Temperature Control Valve

EN-GJL-250
G 1″ – G 2″

226.0420/226.0421

3-Way-Temperature-Control Valve

EN-GP 240 GH
DN40-DN100

226.0601

3-Way-Temperature Control Valve

G-CuSn5ZnPb
G 1/2″ – G 1 1/4″

Special Designed Temperature Control Valves

227.0710

Special 3-Way-Temperature-Control Valve
G 1/2″ – G 1″

220.0012

Special 2-Way-Temperature Controller
threaded
CuZn39Pb3
G 1/2″a

226.1811

Special temperature controller
DN50 – DN100

226.0921

3-Way-Temperature Control Valve

EN-GJL-250
DN25 – DN80

Temperature Control Valve External Sensor

226.2309

3-Way-Temperature Control Valve
DN50 – DN100
EN-GJL-250

226.1812

3-Way-Temperature Control Valve
DN65/DN100
EN-GJL-250

226.0612

Special Temperature Controler
Diameter 20-32 mm
Body Gun Metal

226.0124

3-Way-Temperature Control Valve external Sensor
DN40 – DN50
EN-GJL-250
